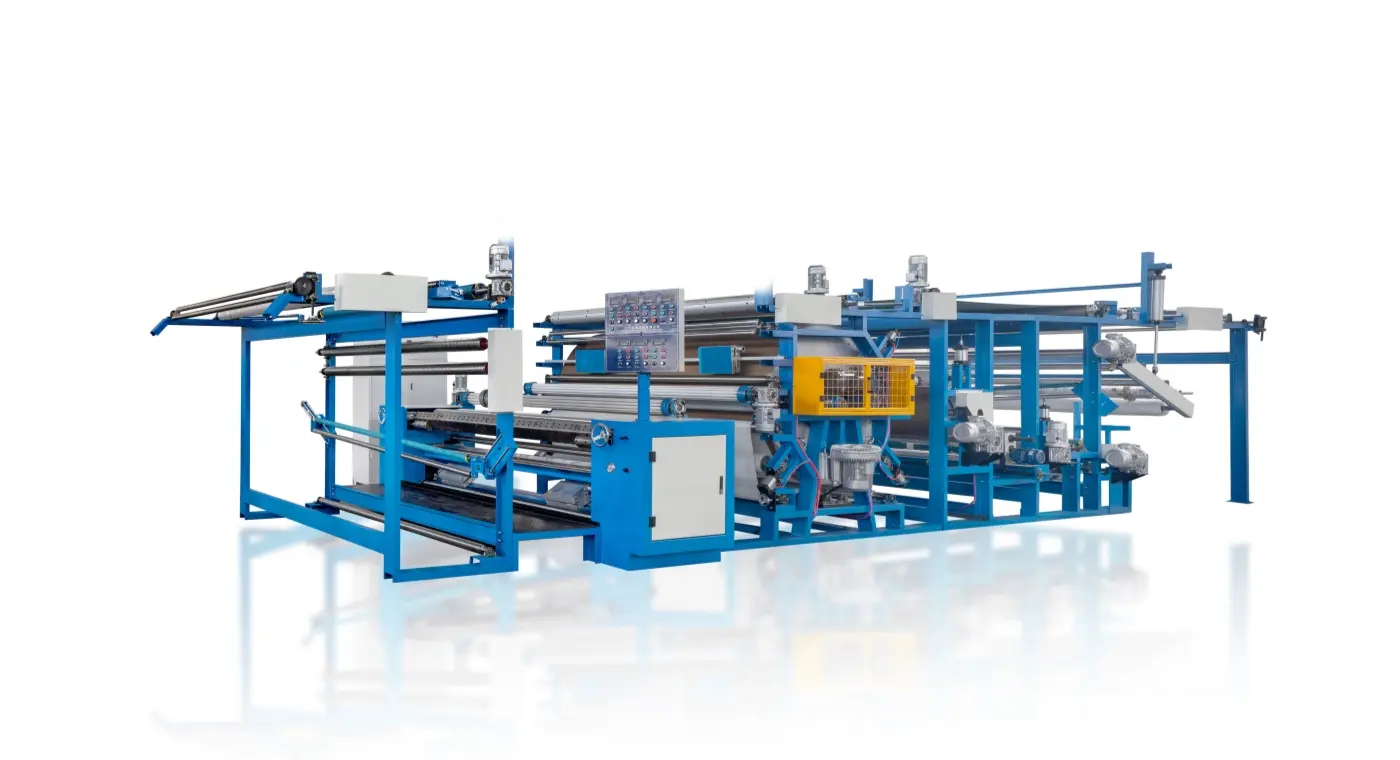

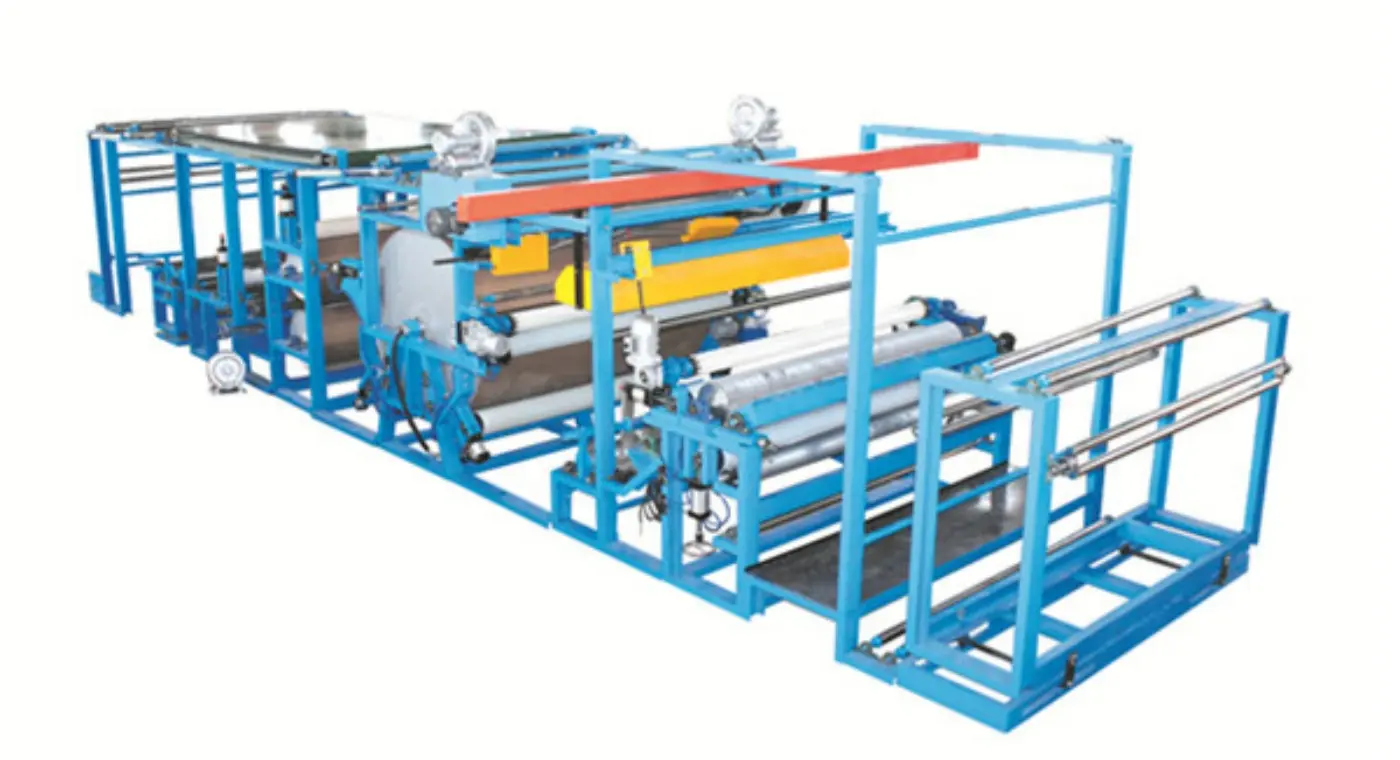

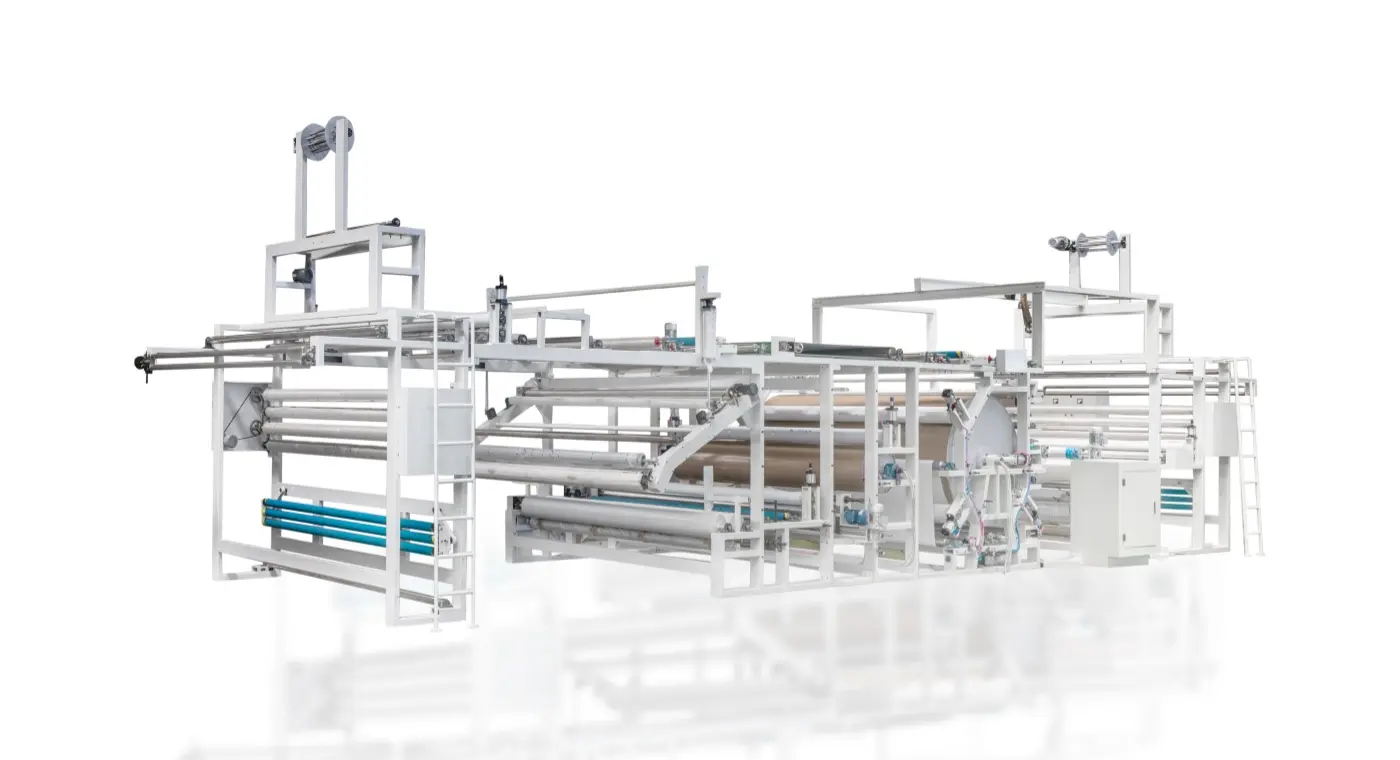

Double Usage Lamination Machine

Double Usage Lamination Machine Using Hot Melt PUR Glue and Solvent Based Glue.

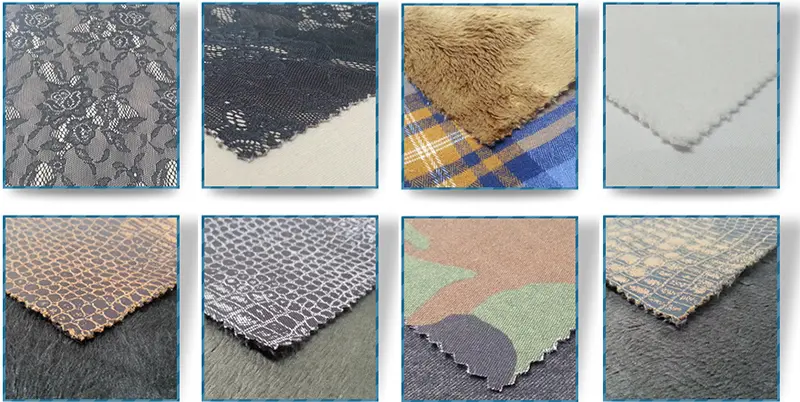

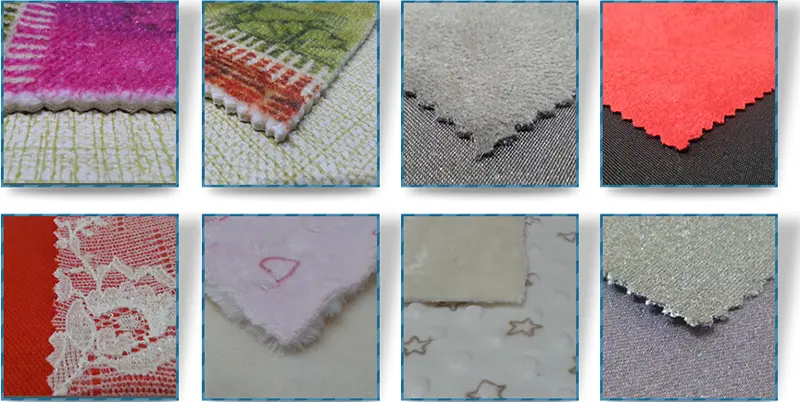

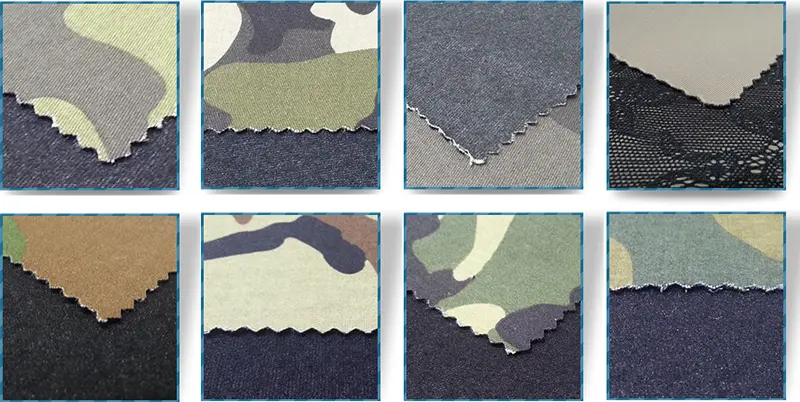

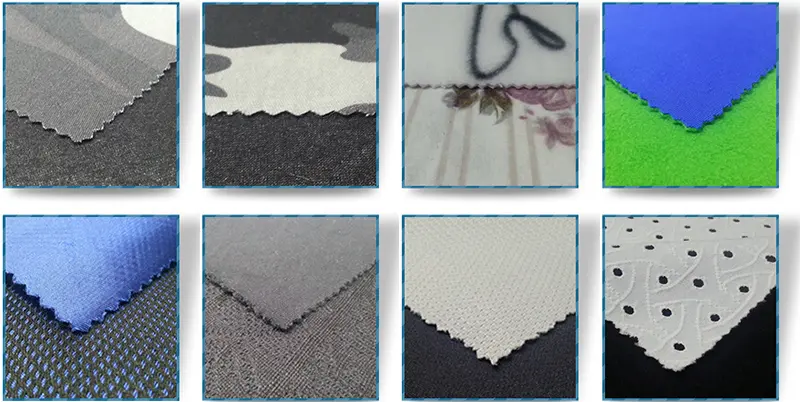

It can laminate garment fabric, sofa fabric, blackout curtain fabric, car trim materials, carpet materials, etc

Inquire

Product Description
Specification
Product Feature
Related Application

Product Description

Succeeding the appearance of solvent based glue lamination machine and hot melt glue lamination machine comes the double usage lamination machine. This type of emerging lamination machine can use both hot melt glue and also solvent based glue.

Compared with hot melt PUR lamination machine, this type of lamination machine is more economical and it can also use solvent based glue. Speaking of functionality, this serious of machine is much better.

Kuntai can equip this series of lamination machine with various types of feeding devices, tension control devices, spreading and opening devices, pressing laminating methods, cooling devices, accumulating designs, rewinding mechanisms, etc to realize different application requirements.

Specification

Max Material Width	1200mm, 1600mm, 1800mm, 2400mm, 3200mm, 3400mm, according to customers' requirement
Machine Roller Width	1400mm, 1800mm, 2000mm, 2600mm, 3400mm, 3600mm, according to customers' requirement
Machine Speed	5-70m/min, according to customers' requirement
Gap Adjustment	Servo Motor Control Available on Request
Heating Method	Electrical and Oil Heating or Only Oil Heating, etc
Cooling Method	Cooling fan, cooling rollers, chiller, as per customers’ request
Voltage	220v, 380v, Customizable
Control system	PLC, Servo Motor, Inverter
Varieties	a. With or without coating function b. Different unwinding stands c. Different feeding devices d. Double layers or trilayers lamination

Product Feature

1

Versatility of function, capable of using solvent based glue, hot melt film/web, hot melt glue, water based glue (thickener added).
2

High production possibility.
3

Low specific energy consumption.
4

If needed, compact machine design has small floor space requirement for production line.
5

Careful feeding, spreading, conveying, pressing, cooling and other treatments of material during process, catering to market products.
6

KUNTAI designs a number of standardized gluing devices that are suitable for the process depending on material type and final product.
7

Computerized the strength control over machines. That is why KUNTAI can make high quality lamination machine with 3400mm, 3600mm, 5200mm or wider roller width.
8

For strechable fabric, such as mattress fabric, garment fabric, KUNTAI uses unique tension control system and conveyor system, so that the fabrics feed in order.
