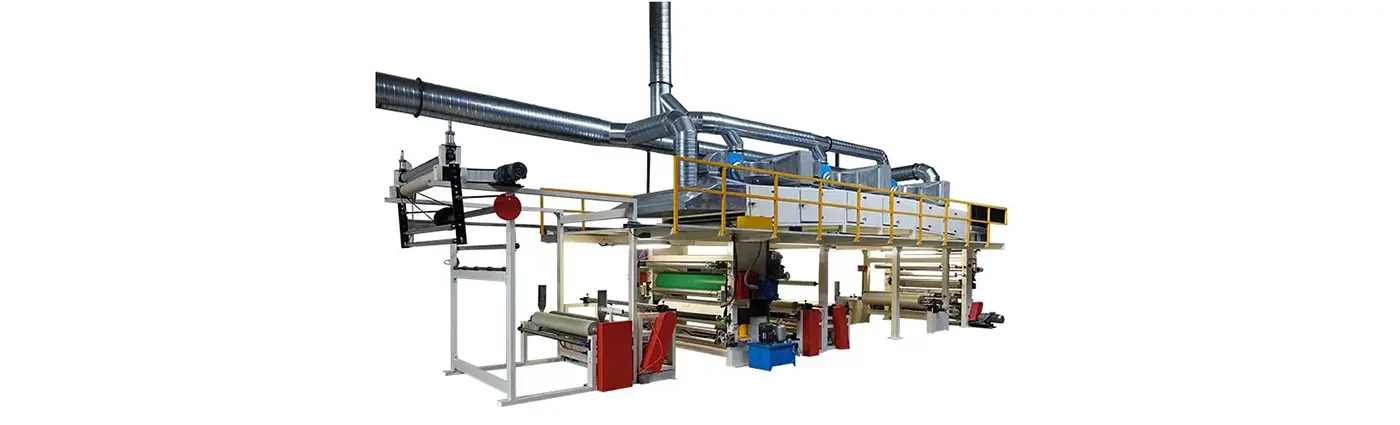

Bronzing Machine for Home Textile, Garment

Bronzing Machine for Home Textile, Garment

Multifunctional, energy saving and synchronized easy operation bronzing machine, suitable for bronzing of artificial leather, fabric, plastic-skin, knitting or color changing of artificial leather, film, etc.

Inquire

Product Description
Specification
Product Feature
Related Application

Product Description

Kuntai makes a variety of multifunctional bronzing machines, catering to different industries, such as home textile, upholstery, garment, balls, packaging, etc.

Available functions samples are:

Function 1: To add chemical (and pattern) onto fabric or artificial leather, curing and press(and transfer the color of the foil onto fabric or artificial leather).

Function 2: To add chemical and pattern onto foil and curing and press the foil with fabric.

Function 3: Color changing of artificial leather or film.

Various materials, such as sofa fabric, knitted fabric, artificial leather, nonwoven, laminated fabric all can be used in Kuntai bronzing machine.

Specification

Width	1100mm, 1300mm, 1500mm, 1600mm,1800mm, 2000mm, 3500mm, according to customers' requirement
Machine Speed	20 to 40m/min
Heating Zone	2000m x 3, 2500m x 3, according to customers' requirement
Heat Transfer Roller	Mirror or Chromed, according to customers' requirement
Control Zones	3, customizable
Machine Heating Power	120-220kw, Customizable
Voltage	220v, 380v, Customizable
Control system	Touch screen, PLC
Varieties	1. Heating method: electrical or oil heating 2. To be equipped with rewinder or sway device 3. Drying oven design: old or latest energy saving type

Product Feature

1

Length of heating oven can be 6m, 7.5m, customizable. Heating method can be electric or hot oil heating. Energy saving design available on request. Heating oven is arc-shaped. It makes film running more smoothly and heating more uniform.
2

It is frequency control. Speed is precisely set and operation is easy.
3

Blade rack can be multiaspect adjusted and swing around, effectively protecting the blade and engraved/design roller and guaranteeing good stamping/bronzing effect.
4

Chemical tank mechanism: It adopts worm gear and gear rack devices, which can adjust the up and down movement of the chemical tank according to the amount of chemical, greatly reducing labor intensity.
5

For pressing part, it adopts oil pressure(hydraulic). Stable and suitable for various designs bronzing. Mirror surface and chromed surface are available on request.
6

Machine is PLC controlled to achieve digital operation. It is much easier to study and operate the machine and monitor.
7

The aluminum alloy rollers protects materials and feeds smoothly and precisely.
8

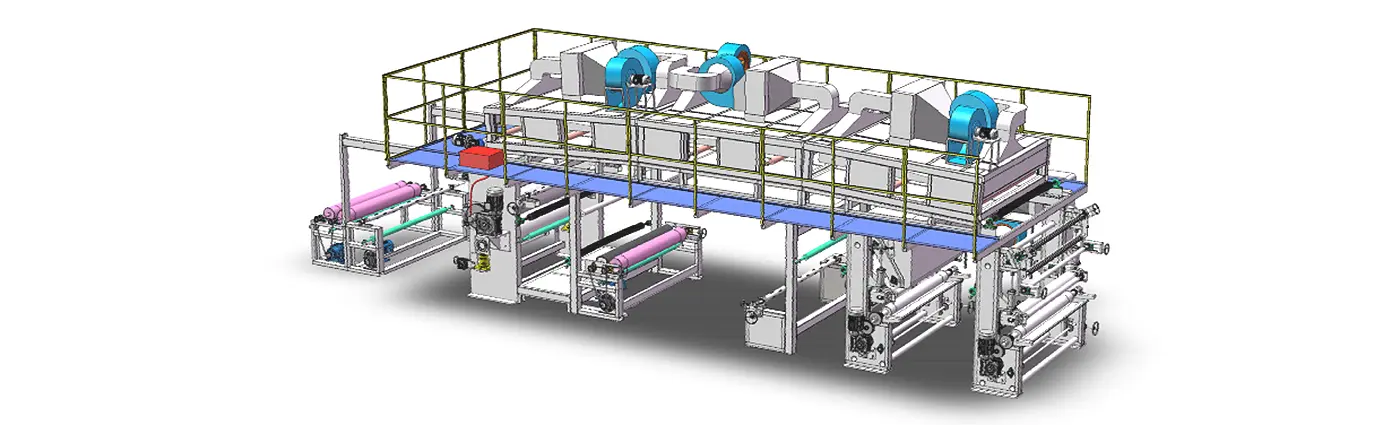

Kuntai special path way design provides multifunctional bronzing machines for different applications.
